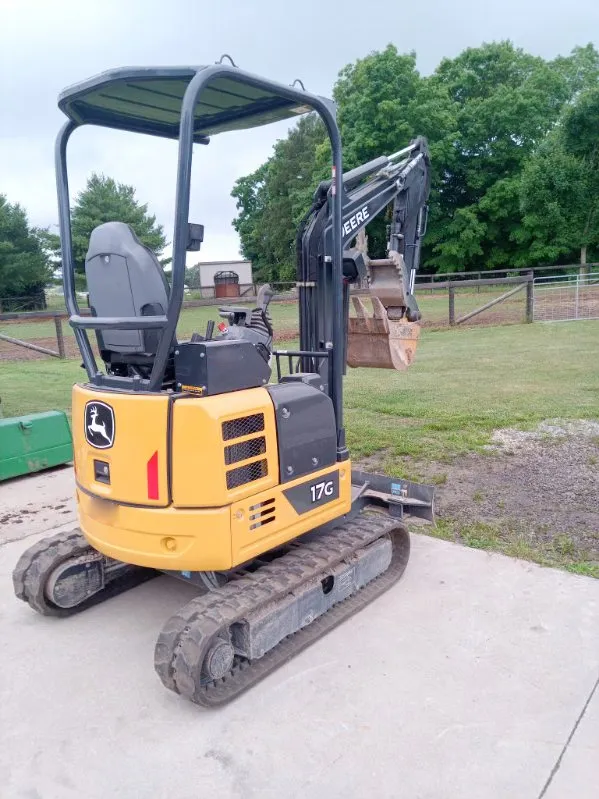

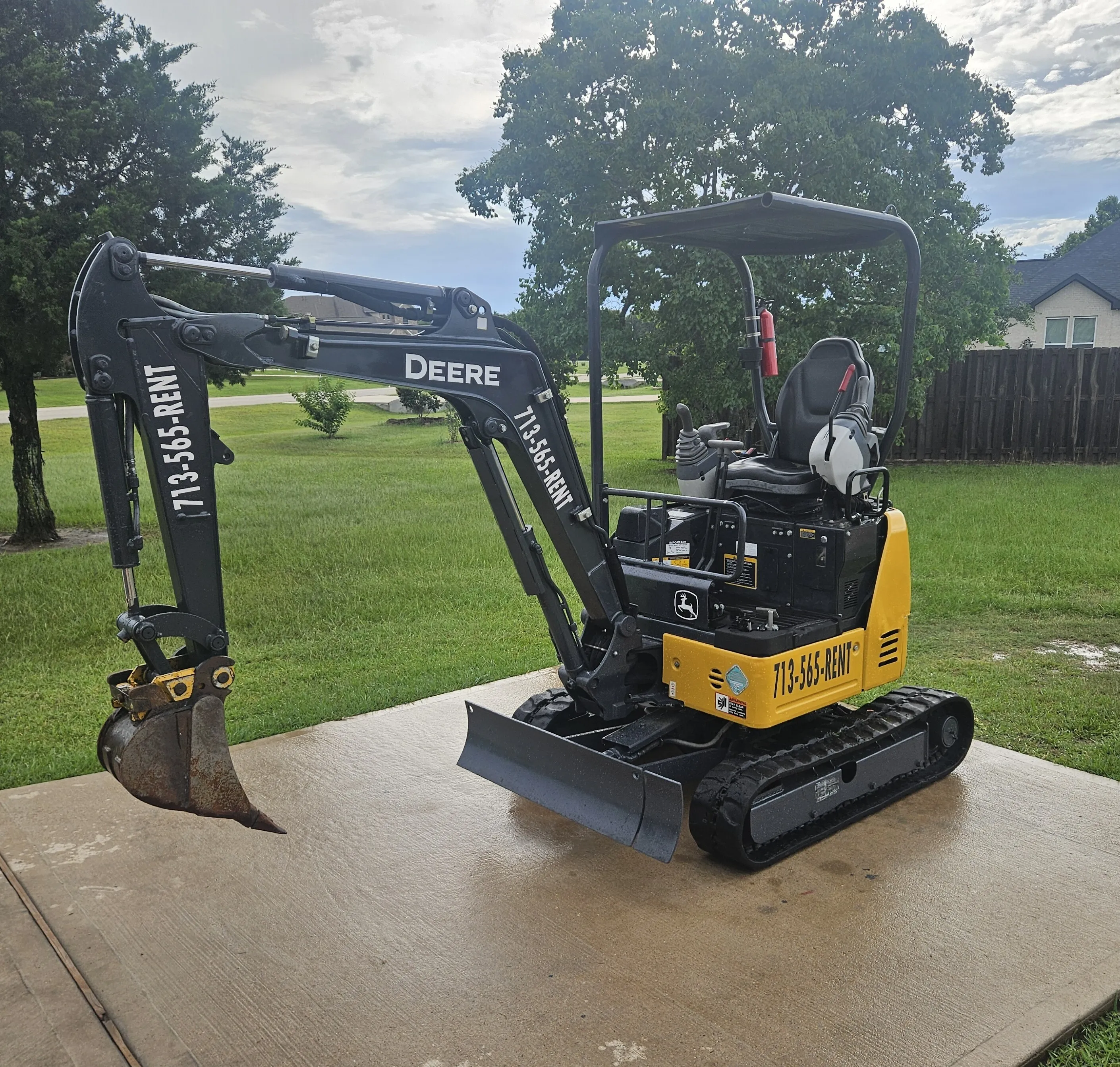

John Deere 17G Mini Excavator

John Deere 17G Mini Excavator

$250 / 24hr rental
$800 / Week

Trailer Available: $50

Engine & Driveline

• Engine Manufacturer: Yanmar 3TNV74F
• Engine Type: 3-cylinder, naturally aspirated diesel
• Displacement: 61 cu. In.
• Net Power: 14.5 hp @ 2,400 rpm
• Emission Rating: EPA Final Tier 4
• Electrical System: 12-volt system with a 40-amp alternator

Performance & Working Range

• Maximum Digging Depth: 7 ft. 2 in.
• Maximum Digging Reach: 12 ft. 6 in.
• Maximum Cutting Height: 11 ft. 7 in.
• Maximum Dumping Height: 8 ft. 3 in.
• Bucket Breakout Force: 3,597 lbf
• Arm Tearout Force: 1,933 lbf
• Travel Speed: 1.5 mph (Low) to 2.6 mph (High)
• Swing Speed: 9.4 rpm

Hydraulic System

• Pump Type: Open center; 2 variable-displacement piston pumps, 1 fixed-gear pump, 1 pilot pump
• Total Flow Rate: 10.2 gpm
• Auxiliary Flow: 7.9 gpm

Dimensions & Weights

• Operating Weight: 3,790 lbs
• Overall Transport Length: 11 ft. 6 in.
• Overall Transport Height: 7 ft. 10 in.
• Undercarriage Width (Retracted): 3 ft. 3 in.
• Undercarriage Width (Extended): 4 ft. 2 in.
• Tailswing Radius: 2 ft. 3 in.
• Ground Clearance: 6 in.
• Track Shoe Width: 9 in. rubber tracks
• Ground Bearing Pressure: 3.9 psi

Service Capacities

• Fuel Tank: 5.3 gal.
• Hydraulic Tank: 3.7 gal.
• Engine Oil (with filter): 3.3 qt.
